Mesh Back Multi-Levels Gondola Double Shelves For Retail Stores

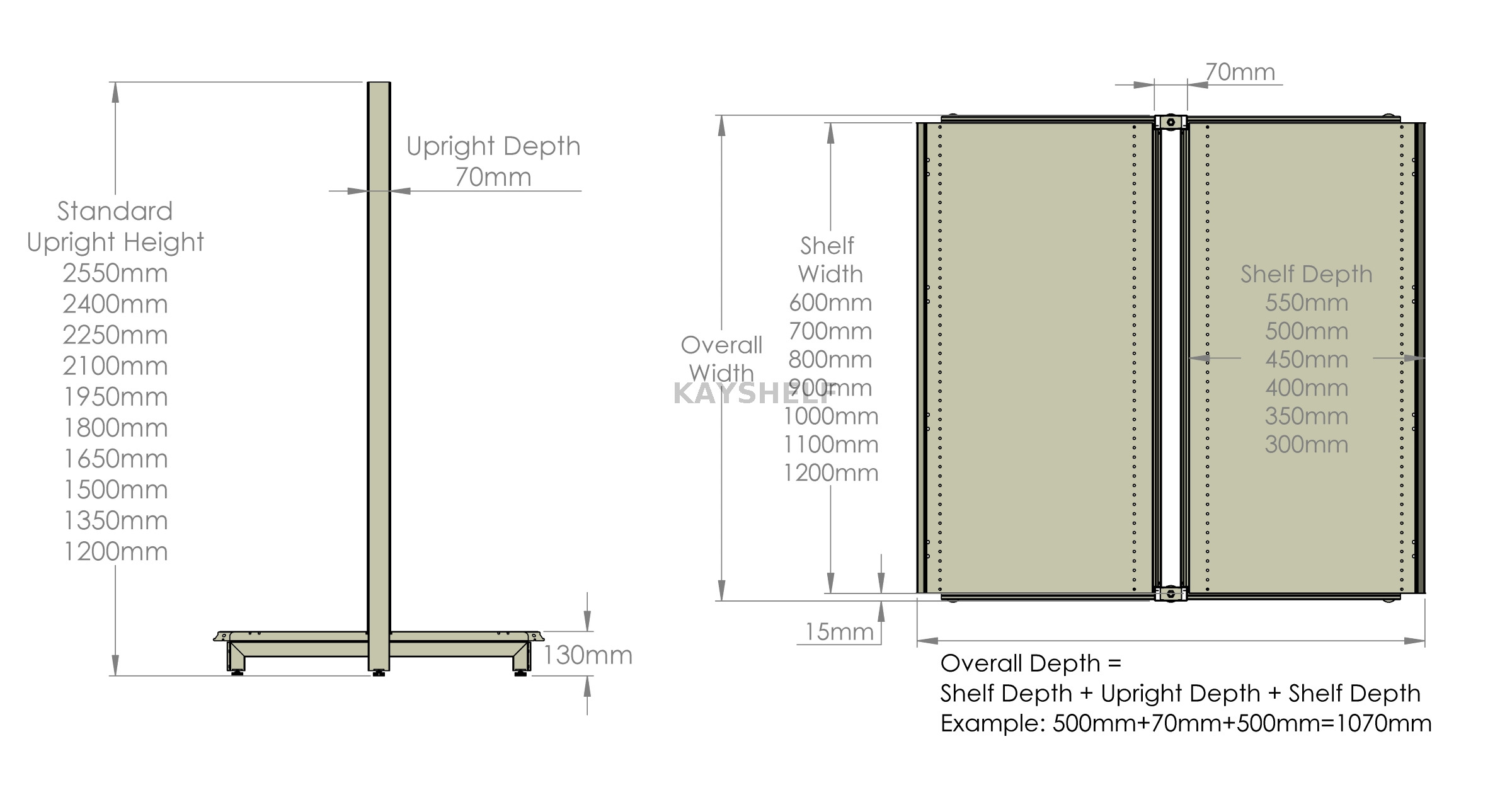

Double Sided Shelves with Mesh Back Panel
Dimension Ref.: 1000mm(W)×400mm(D)×1500mm(H)
Shelf Levels: 1-5 levels (as per request)
Shelves Depth: 400mm for base, 350mm for shelves
Color: black, grey, cream, white, etc.
Join a number of the double sided unit to make a gondola run of ideal length. End gondolas are available to complete the gondola run.
Plastic data strip holder and leveling feet are included.

Model:
KX-W370-001

Availability:

Quantity:



Inquire Add to Basket

Product Description

Kayshelf is direct manufacturer who provides a wide range of of Retail Shelving, standard metal gondola shelving, wooden gondola shelves, supermarket shelving accessories(hooks, cross bar, price tag holder, shelf front rail, etc.).

Mesh Back Multi-Levels Gondola Double Shelves For Retail Stores

KS-W370-001(4) KS-W370-001(3) 457

Knockdown Parts	Size(mm)
Upright with Welded Base Leg	Material	Metal Tube 30x70, Thickness 2.0
Upright with Welded Base Leg	Height	1200/1350/1500/1650/1800/1950/2100/2250/2400
Shelf	Thickness	0.6
	Depth	300/350/400/450/500/550
	Width	500/600/700/800/900/1000/1100/1200
Flat/Perforated Back panel	Height	300/150
	Thickness	0.5
	Width	500/600/700/800/900/1000/1100/1200
Bracket	Depth	300/350/400/450/500/550
Bracket	Thickness	2.5
Accessories	Base Kick Board	500/600/700/800/900/1000/1100/1200
	Shelf Front Guard Rail	Height 50/60/80, Wire Dia.3mm
	Cross Bar	Square Tube 15*30
	Hooks	Single/Double Prong, Length 150/200/250/300/350/400
	Price Tag Strip Holder	Plastic with Clear/Colored Back
